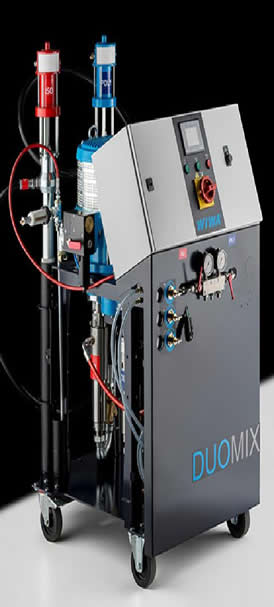

The WIWA DUOMIX PU 540 is another new addition to the DUOMIX PU series. This pneumatic, compact, mobile and versatile system processes almost all polyurethane foams and fast reacting polyureas.
The newly designed, exceptionally efficient heater is based on proven and patented technology for gentle material heating. Only the exact quantity required of each individu-al component is brought quickly and economically to pro-cessing temperature.
The new design of the dosing pumps allows a further impro-ved material flow. The wear of moving parts was thereby considerably reduced.
Technical data
| Mixing ratio |
1:1 (others on request) |
| Pressure ratio |
31:01:00 |
| Output/cycle |
264 cm3 |
| Output at 60 cycles |
15,8l/min |
| Max. air inlet pressure |
8 bar |
| Material flow heting |
12 kW |
| Hose package heting |
47 W/m |
| Hose length max. |
138 m |
| Voltage / phase |
400V/3 P |
| Power consumption |
16,5 kW |
| Max. operating pressure |
248 bar |
| Weight |
210 kg |
|
